Pin Type Fittings

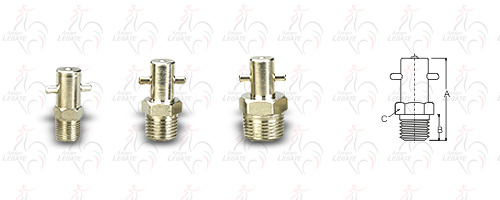

The Pin Type Fittings employ positive locking action of coupler and cross pins of the fitting assuring a high pressure leakproof.

Datasheet
Item No. Description Type a b c STD PACK
mm mm mm Q'ty/ctn W.T/kg
008100 1/8"NPTF N/A 27 8 11 1,800 24
004100 1/4"NPTF N/A 30 11 14 1,200 23
008300 3/8"NPTF N/A 31 11 17    800 23
002100 1/2"NPTF N/A. 35 13 22    600 24
008101 1/8"PTF N/A 27 8 10 1,800 24
004101 1/4"PTF N/A 30 11 14 1,200 23
008301 3/8"PTF N/A 31 11 17    800 23
002101 1/2"PTF N/A 35 13 22    600 24
