UNF Threads Fittings

Datasheet

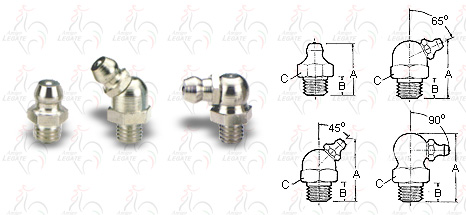

Item No. Description Type a b c STD PACK
mm mm mm Q'ty/ctn W.T/kg
412800 1/4"-28 Str. 13.7 4.6 8 8,000 22
412801 1/4"-28 (Short) Str. 12.3 3.5 8 8,000 21
412802 1/4"-28 (Long) Str. 16.7 7.6 8 8,000 23
412803 1/4"-28 11/16"
Overall
Str. 17.3 8.6 8 6,000 20
412804 1/4"-28 15/16"
Overall
Str. 23.9 15.7 8 4,000 18
412805 1/4"-28 1-1/8"
Overall
Str. 28.7 19.8 8 3,000 17
412806 1/4"-28 1-5/8"
Overall
Str. 41.3 25.4 8 2,000 17
412845 1/4"-28 45° 20.8 5.1 9.5 3,000 20
412846 1/4"-28 45° 23.9 7.6 9.5 3,000 21
412865 1/4"-28 65° 19.8 5.1 9.5 3,000 20
412890 1/4"-28 90° 19.3 5.1 9.5 3,000 21
652400 5/16"-24 Str. 16.0 6.0 10 4,000 22
652445 5/16"-24 45° 24.0 6.0 10 3,000 23
652465 5/16"-24 65° 22.5 6.0 10 3,000 23
652490 5/16"-24 90° 19.5 6.0 10 3,000 24
832400 3/8"-24 Str. 16.9 6.3 11 4,000 25
832445 3/8"-24 45° 24.9 6.3 11 2,400 23
832465 3/8"-24 65° 22.9 6.3 11 2,400 23
832490 3/8"-24 90° 21.0 6.3 11 2,400 24
