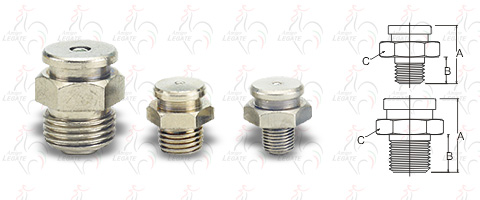

Button Head

The Button Head Fittings (also called Flat Head Fittings) have advantages of robustness hard wearing, and only minimal projection unlike conical head fitting. The button head fittings are designed for use where volume flow of lubricant is required, such as bearings on earth moving equipment, conveyors and mining machinery.

Datasheet
Item No. Description Type a b c STD PACK
mm mm mm Q'ty/ctn W.T/kg
112700 1/8"-27 Str. 19.0 8.7 16 1,000 19
112701 1/4"-18 Str. 21.0 11.0 16 1,000 20
112702 3/8"-18 Str. 24.2 12.3 19    400 21
112703 1/2"-14 Str. 27.0 13.9 22 300 22
112811 1/8"-28 Str. 19.0 8.7 17 1,000 19
112812 1/4"-19 Str. 21.0 11.0 17 1,000 20
112813 3/8"-19 Str. 22.6 11.4 19    400 21
