Drive Type Fittings

The Drive Fittings are usually pressed into drilled holes, thus saving the cost of tapping. They are used for low or medium pressure application. Cannot be used where high lubricant back pressures can be developed.

Customs' designs & specifications are welcome!

Datasheet

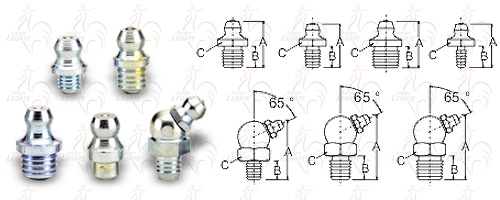

Item No. Description Type a b c STD PACK
mm mm mm Q'ty/ctn W.T/kg
810000 1/8" Drive Str. 14.3 6.3 Φ8 8,000 18
810001 1/8" Drive,
No Ball Check		 Str. 12.0 4.0 Φ8 8,000 17
630000 3/16" Drive Str. 13.9 5.8 Φ8 8,000 19
630001 3/16" Drive,
No Ball Check		 Str. 9.9 2.4 Φ8 8,000 18
630002 3/16" Drive Str. 12.0 4.4 Φ8 8,000 19
630003 3/16" Drive,
No Ball Check		 Str. 12.3 5.6 Φ8 8,000 20
630004 3/16" Drive,
No Ball Check		 Str. 15.9 6.4 Φ8 8,000 19
630045 3/16" Drive 45° 21.0 5.6 9.5 4,000 20
630065 3/16" Drive 65o 17.9 5.6 9.5 4,000 20
410000 1/4" Drive Str. 13.9 5.8 Φ8 8,000 21
410001 1/4" Drive,
No Ball Check		 Str. 14.3 6.7 Φ8 8,000 20
410002 1/4" Drive,
No Ball Check		 Str. 11.9 3.2 Φ8 6,000 20
410065 1/4" Drive 65° 21.5 7.1 9.5 2,400 19
650000 5/16" Drive Str. 13.9 6.4 Φ10 4,000 21
650001 5/16" Drive,
No Ball Check		 Str. 15.9 5.6 Φ10 4,000 20
650065 5/16" Drive 65° 21.5 7.1 10 2,400 20
830000 3/8" Drive Str. 14.7 5.6 Φ11 4,000 22
830001 3/8" Drive,
No Ball Check		 Str. 14.7 5.6 Φ11 4,000 21
060000 6mm Drive Str. 14.4 6 Φ8 6,000 19
080000 8mm Drive Str. 15.2 6 Φ10 1,000 17
