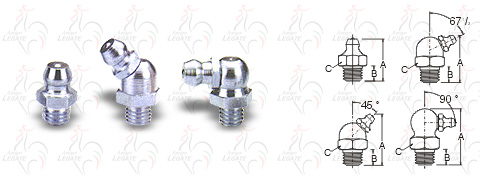

UNC Threads Fittings
Datasheet
| Item No. |
Description |
Type |
a |
b |
c |
STD PACK |
| mm |
mm |
mm |
Q'ty/ctn |
W.T/kg |
| 412000 |
1/4"-20 |
Str. |
13.2 |
5.3 |
8 |
8,000 |
22 |
| 412001 |
1/4"-20 |
Str. |
23.8 |
5.0 |
8 |
6,000 |
25 |
| 412045 |
15/16"Overall |
45° |
22.8 |
5.0 |
9.5 |
3,000 |
20 |
| 412067 |
1/4"-20 |
67-1/2° |
19.8 |
5.0 |
9.5 |
3,000 |
20 |
| 412090 |
1/4"-20 |
90° |
19.0 |
5.0 |
9.5 |
3,000 |
21 |
| 651800 |
5/16"-18 |
Str. |
16.0 |
6.0 |
10 |
4,000 |
22 |
| 651845 |
5/16"-18 |
45° |
24.0 |
6.0 |
10 |
3,000 |
23 |
| 651867 |
5/16"-18 |
67-1/2° |
22.5 |
6.0 |
10 |
3,000 |
23 |
| 651890 |
5/16"-18 |
90° |
19.5 |
6.0 |
10 |
3,000 |
24 |
| 831600 |
3/8"-16 |
Str. |
16.9 |
6.5 |
11 |
4,000 |
25 |
| 831645 |
3/8"-16 |
45° |
24.9 |
6.5 |
11 |
2,400 |
23 |
| 831667 |
3/8"-16 |
67-1/2° |
22.9 |
6.5 |
11 |
2,400 |
23 |
| 831690 |
3/8"-16 |
90° |
21.0 |
6.5 |
11 |
2,400 |
24 |
